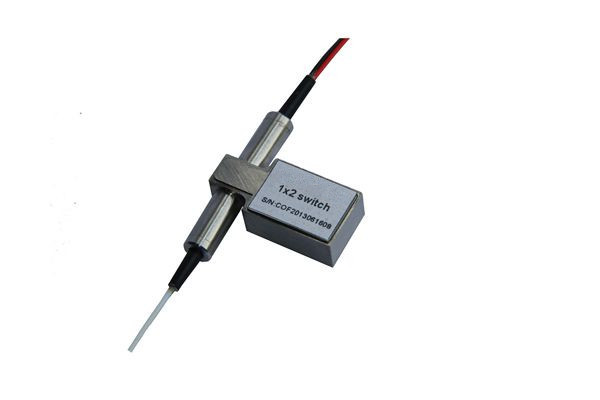

Light Weight Optical Cable Switch For Light Signal Road / System Monitoring

Light Weight Optical Cable Switch For Light Signal Road / System Monitoring

Features

•Unmatched Low Cost
•Low Insertion Loss
•High Channel Isolation
•Highly Stable and Reliable
•Epoxy-Free Optical Path

Application

•The light signal top/bottom road
•System monitoring
•Instrument equipment
•Light signal routing

Parameters	Specifications
Operating wavelength (nm)	1260～1360 or 1510～1610		1310/1550 ± 40
Insertion loss (dB)	P grade	A grade	P grade	A grade
Insertion loss (dB)	< 0.6	< 0.8	< 0.7	< 1.0
Wavelength dependant loss (WDL) (dB)	≤ 0.25	≤ 0.25	≤ 0.25	≤ 0.30
Polarization dependant loss(PDL) (dB)	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
Temperature dependant loss(TDL)(dB)	< 0.15	< 0.20	< 0.15	< 0.20
Cross talk (dB)	>55	>55	>55	>55
Durability (dB)	< ± 0.05
Return loss (dB)	> 55
Switching time (ms)	<10 (Typ.4)
Coil resistance (Lead Angle 1-5 or 6-10) (ohms)	178 ± 10%
Operating voltage(V)	5
Maximum power load (mW)	500
Durability (cycle )	>10 million
Operating temperature (°C)	0 ～ +70
Storage temperature (°C)	-45 ～ +85
Fiber type	SMF-28
Fiber length (m)	1.0 +/- 0.1
Dimension (LxWxH) (mm)	27.2×12. 8×7.5

Insertion loss is not within connector.

Electronic pins structure:

Non-latching

Optical path	Condition
Optical path	PIN1	PIN10	PIN3-2	PIN3-4	PIN8-9	PIN8-7
1---3	N/A	N/A	CLOSE	OPEN	CLOSE	OPEN
1---2	GND	+5v	OPEN	CLOSE	OPEN	CLOSE

Latching

Optical path	Circuit driver				Condition
Optical path	PIN1	PIN5	PIN10	PIN6	PIN3-2	PIN3-4	PIN8-9	PIN8-7
1---2	N/A	N/A	+5v	GND	OPEN	CLOSE	OPEN	CLOSE
1---3	+5v	GND	N/A	N/A	CLOSE	OPEN	CLOSE	OPEN

Ordering information:

Type

Condition

Operating wavelength

Port

Grade

Fiber type

Fiber length

In/Out connector type

SMS

1=non-latching

2=latching

15=1550±40nm

13=1310±40nm

35=1310/1550nm

0102=1x2

0104=1x4

0108=1x8

01016=1x16

01032=1x32

01064=1x64

0100=other

1=P grade

2=A grade

1=Bare Fiber

2=900um Jacket

1=1 Meter

2=2 Meter

1=None

2=FC/APC

3=FC/PC

4=SC/APC

5=SC/PC

6=ST

7=LC

Type

Condition

Operating wavelength

Port

Grade

Fiber type

Fiber length

In/Out connector type

SMS

1=non-latching

2=latching

15=1550±40nm

13=1310±40nm

35=1310/1550nm

0102=1x2

0104=1x4

0108=1x8

01016=1x16

01032=1x32

01064=1x64

0100=other

1=P grade

2=A grade

1=Bare Fiber

2=900um Jacket

1=1 Meter

2=2 Meter

1=None

2=FC/APC

3=FC/PC

4=SC/APC

5=SC/PC

6=ST

7=LC
