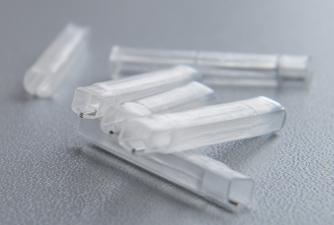

Heat Shrinkable Tube For Rubber-insulated Wire Optical Cable Connector
Applications:
Manufactured by cross-linked polyolefin, stainless steel rod and hot fusion tubing. To rebuild the coating of fiber, providing mechanical strength at the fusion joint area and keeping optical transmission properties. Widely used in optical fiber termination box and optical fiber junction box.
Characteristics:
Flexible
Flame retardant and chemical resistance.
Low shrink temperature
Simple operation and rapid shrinking
Operating temperature range:
Operating temperature : -55℃~105℃
Minimum operating temperature : 60℃
Minimum fully recovery temperature : 90℃e
Production dimensionnsio
Fusion tube | Steel rod | Notes | ||||||
Part Number | Item Number | O.D. after recovery | Length | I.D.(mm) | Length | O.D. (mm) | Length (mm) | |
S30-C | 2707384145 | 2.7±0.1 | 32±0.1 | 3.7 | 32 | 0.7 | 30 | |
60AP | 3110374350 | 3.1±0.1 | 60±0.1 | 3.7 | 60 | 1 | 56 | |
28TRD | 2905404549 | 2.9±0.1 | 28±0.1 | 4 | 28 | 0.5 | 27 | Single Stainless steel |
28TRS | 2905404552 | 2.9±0.1 | 28±0.1 | 4 | 28 | 0.5 | 27 | Dual stainless steel |
30SP | 2905374345 | 2.9±0.1 | 30±0.1 | 2.9 | 30 | 0.5 | 29.5 |
![]() |
