Armored PM Patch Cord 3mm FC/APC to FC/APC Polarization Maintaining Patch Cord Single Mode Simplex FC/APC connector

Armored PM Patch Cord FC/APC to FC/APC Polarization Maintaining Patch Cord Single Mode Simplex FC/APC connector

Polarization Maintaining (PM) Patch Cord 980,1060,1310,1550nm
Polarization maintaining (PM) patch cord / jumper leads are built with polarization maintaining panda fiber and connectorise using FC/UPC, FC/APC, SC/UPC, SC/APC and LC connectors. FC connectors can be supplied with wide key (2.14mm, N type) or narrow key (2.02mm, R key) width. Patchcords can be supplied in 250um bare fiber, 900um buffered fiber or 3mm cable. PMP features low insertion loss, high extinction ratio and high return loss. The slow or fast axis can be aligned to the connector key.

Parameter		Specification
Center wavelength (nm)		1310, 1480 or 1550	980,1060	850
Connector type		FC, SC,LC
Max. Insertion (＠23℃) (dB)		0.5	0.7	0.8
Min. Extinction Ratio(＠23℃) (dB)		23	23	22
Min. Return Loss(dB)	UPC	50
	APC	60
Fiber Type		PM1310 or PM1550 or Specify
Key Orientation		Slow axis,Fast axis or Specify
Axis Aligment( ֯ )		±3 or Specify
Operating temperature (℃)		-10 ~ +75
Storage temperature (℃)		-40 ~ +85

Ordering Information
PMP-SS-V-X-Y-ZZ
SS: Wavelength	15 - 1550 nm, 13 - 1310 nm, 64 - 1064 nm, 98 - 980 nm, S - Specify
V: Key Width (For FC connector )	R - 2.02 mm (>23dB), N - 2.14 mm (>20dB)
X : Cable type	B - 250um bare fiber, L - 0.9mm buffer, C - 3mm Cable
Y : Fiber length	0.5- 0.5m, 0.75 - 0.75 m, 1 - 1m, 5 - 5m, S - Specify
ZZ: Connector for end1 and end2	1 - FC/UPC, 2 - FC/APC, 0 - No connector, S - Specify

Pictures:

Related pictures

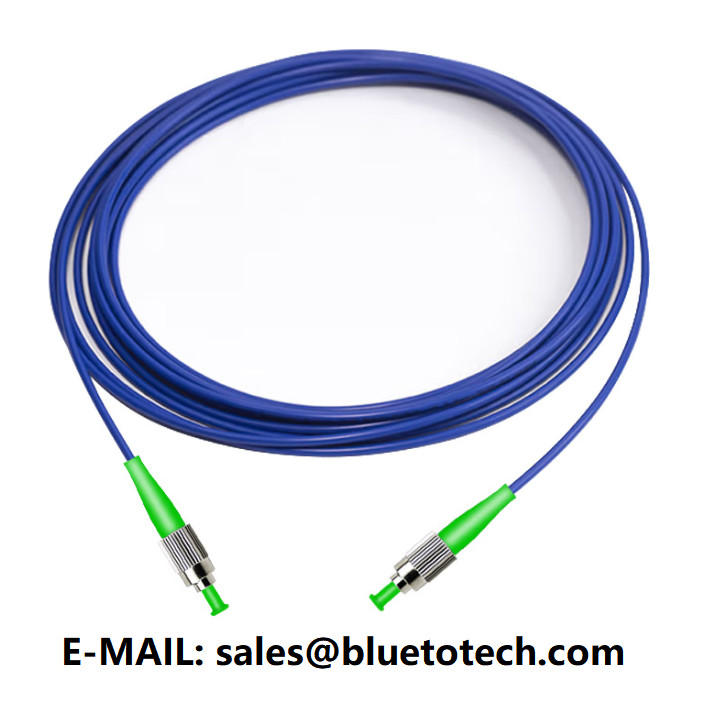

Armored PM Patch Cord 3mm FC/APC to FC/APC Polarization Maintaining Patch Cord Single Mode Simplex FC/APC connector
