Data Center MPO MTP Fiber Optic Patch Cord Low Insertion 24 Cores MPO MTP Fiber Cable

Ask Lasest Price
Model Number :	MTP/MPO-LC
Certification :	ROHS
Price :	Negotiation
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	1000pcs/week
Delivery Time :	5-8working days

Add to Cart

Product Details
Company Profile

Data Center MPO MTP Fiber Optic Patch Cord Low Insertion 24 Cores MPO MTP Fiber Cable

Data Center MPO MTP Cables breakout 8cores MPO/MTP to LC Uniboot connector Fiber Optic Patch Cord Multi mode

MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores

Feature

●Low Insertion loss;
●Low PDL;
●Compact Design;
●Good channel-to-channel uniformity;
●Wide Operating Temperature:From -40℃ to 85℃;
●High Reliability and Stability.

Model	Single Mode	Multi Mode
Fiber Count	8/12/24 cores
Polish	UPC /APC
Housing Colors	Standard (green),Elite (Yellow)	Standard(Beige)Elite(Auqa)
Insertion Loss Standard Type	≤0.7dB	≤0.5dB
Insertion Loss Elite Type	≤0.35dB	≤0.3dB
Return Loss	UPC >50dB, APC>60dB	>30dB
Durability (500 matings)	≤0.2dB
Test Wavelength	1310/1550nm	850/1300nm

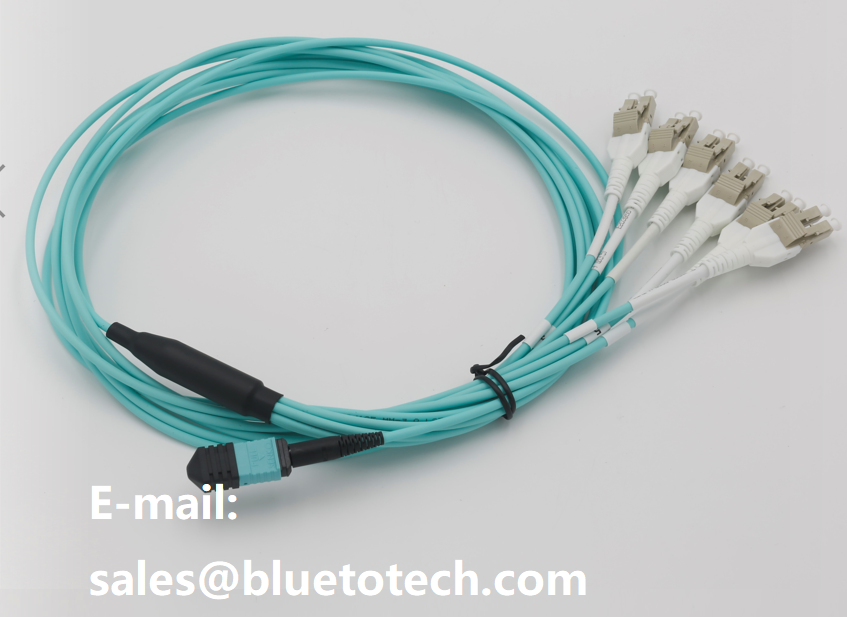

Images:

Data Center MPO MTP Fiber Optic Patch Cord Low Insertion 24 Cores MPO MTP Fiber Cable
