    LC Short Boot Single Mode Fiber Jumper Cables MPO MTP LC 24 Core Fiber Optic Cable

    Ask Lasest Price
    Model Number : MTP/MPO-LC SM 24core
    Certification : ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000pcs/week
    Delivery Time : 3-5working days
    • Product Details
    • Company Profile

    LC Short Boot Single Mode Fiber Jumper Cables MPO MTP LC 24 Core Fiber Optic Cable

    LC White Short Boot MPO MTP -LC 24core Fiber Optic Patch Cord MPO/APC To LC Short Boot single mdoe Fiber Jumper

    MTP/MPO/APC connector Color: Green
    Fiber mode: Single mode
    Cable dimameter: 3mm
    Cable color: Yellow

    MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. It is used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores


    Features:

    ● Low Insertion loss;
    ● Low PDL;
    ● Compact Design;
    ● Good channel-to-channel uniformity;
    ● Wide Operating Temperature:From -40℃ to 85℃;
    ● High Reliability and Stability.


    Parameters:

    ModelSingle ModeMulti Mode
    Fiber Count8/12/24 cores
    PolishUPC /APC
    Housing ColorsStandard (green),Elite (Yellow)Standard(Beige)Elite(Auqa)
    Insertion Loss Standard Type≤0.7dB≤0.5dB
    Insertion Loss Elite Type≤0.35dB≤0.3dB
    Return LossUPC >50dB, APC>60dB>30dB
    Durability (500 matings)≤0.2dB
    Test Wavelength1310/1550nm850/1300nm

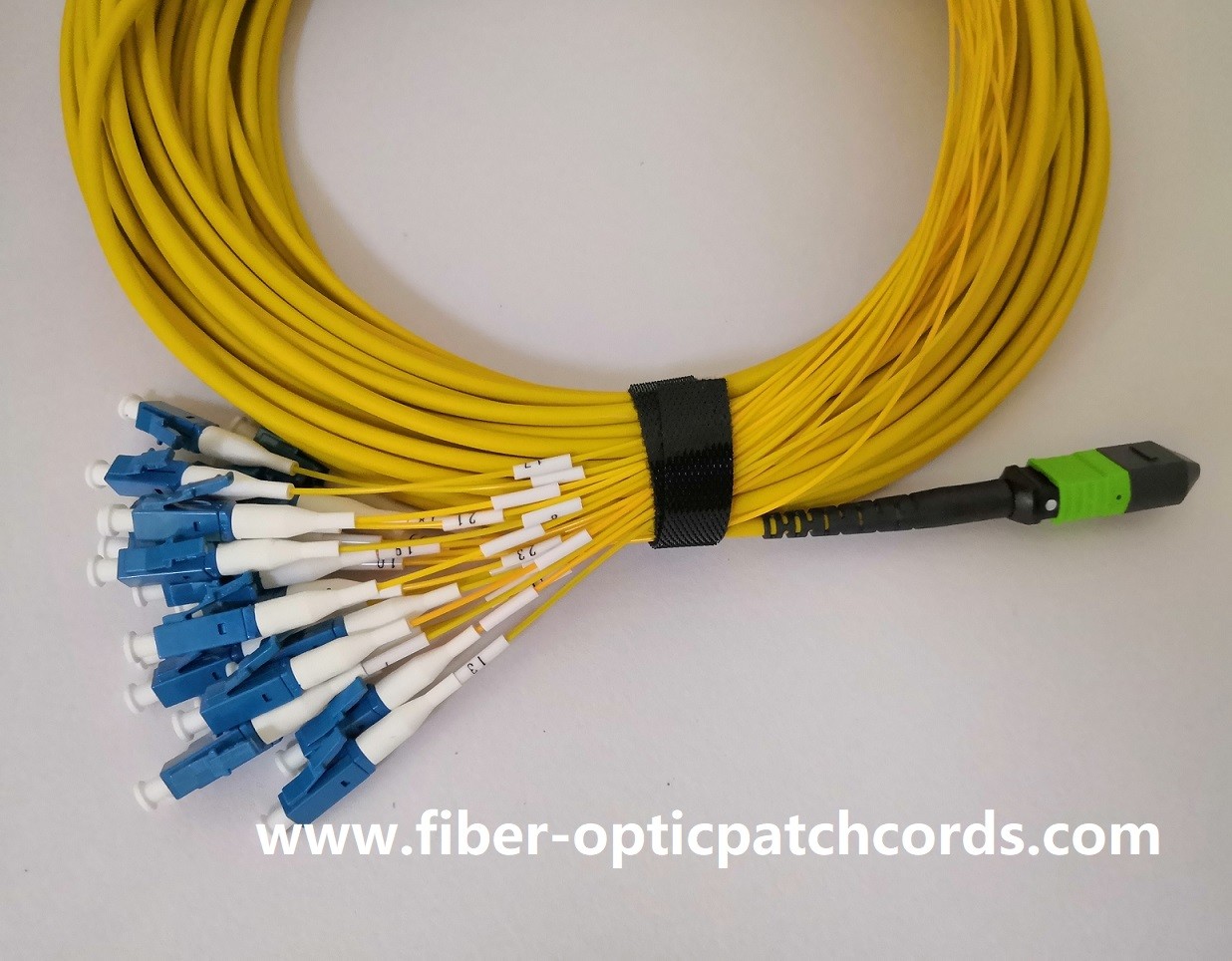

    Product pictures:

    LC Short Boot Single Mode Fiber Jumper Cables MPO MTP LC 24 Core Fiber Optic Cable

    LC Short Boot Single Mode Fiber Jumper Cables MPO MTP LC 24 Core Fiber Optic Cable
